Hydraulic hoses quality determines whether industrial equipment can maintain stable pressure, reduce downtime, and operate safely under demanding conditions. A well-made hose can handle thousands of pressure cycles, temperatures from -40°C to 100°C, and working pressures above 6,000 psi in heavy-duty applications. Selecting reliable hydraulic hoses reduces replacement frequency, fluid leakage risks, and maintenance costs.
Hydraulic systems rely on hoses to transfer pressurized fluid between pumps, valves, cylinders, and motors. Although hoses are flexible compared with steel pipes, they must handle repeated bending, vibration, pressure changes, and exposure to oil or chemicals. In industrial equipment, a hose failure can stop production, damage nearby components, and create safety concerns.

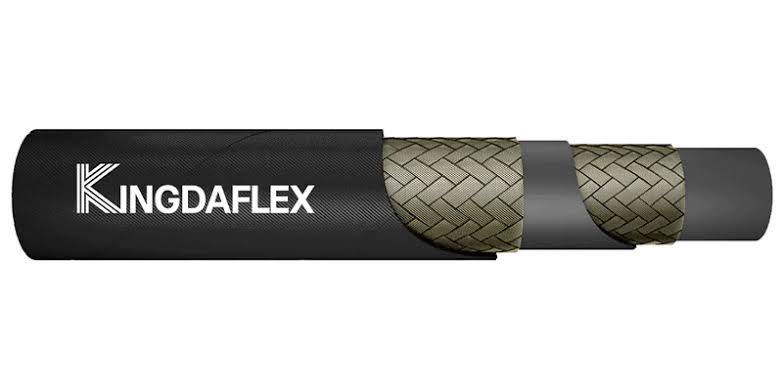

A hydraulic hose normally contains three layers: an inner tube, reinforcement layer, and outer cover. Each layer has a specific function. The inner tube controls fluid compatibility, the reinforcement layer handles pressure, and the outer cover protects against environmental damage.
| Hose Layer | Main Function | Common Materials |
|---|---|---|
| Inner tube | Transfers hydraulic fluid | Nitrile rubber, thermoplastic |
| Reinforcement | Handles pressure load | Steel wire, textile fiber |
| Outer cover | Protects against wear | Synthetic rubber compounds |
The quality of each layer affects service life. For example, nitrile rubber hoses are widely used with petroleum-based hydraulic fluids because they provide good oil resistance. In applications requiring chemical resistance or lower weight, thermoplastic materials are often selected.
Pressure performance is one of the most important factors when choosing hydraulic hoses. Industrial machines frequently experience pressure spikes during sudden movements or load changes. A hose rated only for normal operating pressure may fail when exposed to repeated pressure peaks.
According to SAE J517 hydraulic hose standards, many industrial hoses are designed with a burst pressure rating around four times higher than the recommended working pressure. A hose operating at 5,000 psi working pressure may require a burst capability close to 20,000 psi.
A hose should not only match the machine’s normal pressure but also handle unexpected pressure changes during operation.
Pressure resistance depends on reinforcement design. Single-wire braided hoses are commonly used for medium-pressure systems, while spiral wire hoses are selected for high-pressure equipment such as mining machines and construction machinery.
Different reinforcement structures provide different performance levels:
| Reinforcement Type | Typical Pressure Range | Application |
|---|---|---|
| Textile braid | Low pressure | Lubrication and service equipment |
| Single/two wire braid | Medium pressure | Industrial machinery |
| Four or six spiral wire | High pressure | Mining, construction, heavy equipment |
Temperature resistance also affects hydraulic hose reliability. Hydraulic oil temperature often reaches 60°C to 80°C during normal operation, but some machines operate above 100°C. Continuous exposure to high temperatures accelerates rubber aging and reduces flexibility.
Research on elastomer materials shows that increasing operating temperature by approximately 10°C can significantly shorten material service life. For equipment operating continuously, selecting hoses with suitable temperature ratings can extend replacement intervals.
Temperature conditions are closely related to chemical compatibility. Hydraulic fluids contain additives that may affect hose materials over time. A hose designed for petroleum oil may not perform well with biodegradable fluids, phosphate ester fluids, or other specialized fluids.
Manufacturers usually provide compatibility charts showing suitable combinations between hose materials and hydraulic fluids. Checking these specifications before installation helps avoid swelling, cracking, or internal damage.
Abrasion resistance is another major factor in industrial environments. Equipment such as excavators, cranes, and agricultural machines contain moving parts that can rub against hose surfaces. Repeated contact may damage the outer cover and expose reinforcement wires.
A damaged outer layer allows moisture and contaminants to reach internal reinforcement materials. Steel wire corrosion can reduce pressure strength and shorten service life. In heavy-use industries, abrasion-resistant covers are often selected to improve durability.
The external environment also influences hose performance. Outdoor machines may face sunlight, rain, dust, and temperature changes throughout the year. Ozone exposure can create surface cracks in rubber materials, especially when equipment remains unused for long periods.
Proper installation is necessary even when using high-quality hoses. Incorrect routing, excessive bending, or twisting can create additional stress. A hose installed below its minimum bend radius may experience faster wear because the reinforcement structure is forced to carry uneven loads.
Manufacturers normally provide minimum bend radius information. For example, some high-pressure spiral hoses require a bend radius of 200 mm or more depending on size and construction.
Hose installation should allow natural movement without stretching, twisting, or continuous contact with sharp edges.
The connection between hoses and fittings also affects reliability. Poorly matched fittings may cause leakage at connection points, while incorrect assembly procedures can damage the hose end. Industrial maintenance teams often inspect fittings together with hoses because connection failures are common sources of fluid loss.
Hydraulic system efficiency is also influenced by hose quality. Internal diameter accuracy affects fluid flow resistance and pressure loss. A hose with incorrect dimensions may increase energy consumption because pumps must work harder to maintain system pressure.
For large industrial machines operating several thousand hours per year, small efficiency losses can increase operating expenses. A manufacturing line running 4,000 hours annually may experience noticeable energy waste if hydraulic components are not properly matched.
Maintenance records show that regular inspection improves equipment availability. Many industrial operators inspect hoses before every shift or during scheduled maintenance periods. Common inspection points include:
-
Surface cracks or cuts
-
Oil leakage around fittings
-
Swollen hose sections
-
Damaged outer covers
-
Corrosion near connectors
-
Unusual stiffness or deformation
Replacing hoses before failure is usually less expensive than repairing equipment after a sudden rupture. In industries where machines operate continuously, unexpected downtime can cost thousands of dollars per hour depending on production scale.
The service life of hydraulic hoses depends on operating pressure, temperature, environment, and maintenance quality. A hose used in a clean indoor factory may last several years, while one used in mining or construction may require more frequent replacement because of vibration, dust, and mechanical contact.
Selecting certified products from experienced manufacturers helps maintain consistent performance. Companies producing hydraulic hoses usually follow standards such as SAE, ISO, and other industry requirements to control dimensions, pressure ratings, and material quality.
When comparing hose options, purchasing price should not be the only factor. A lower-cost hose may require more frequent replacement and create additional maintenance work. A properly selected hose provides stable performance throughout its expected service period.
| Selection Factor | Why It Matters |
|---|---|
| Working pressure rating | Prevents pressure-related failure |
| Temperature range | Maintains material strength |
| Fluid compatibility | Reduces chemical damage |
| Reinforcement structure | Controls pressure capability |
| Cover protection | Improves outdoor durability |
Modern industrial equipment continues to demand higher pressure, faster movement, and longer operating hours. In systems used for construction, agriculture, manufacturing, and energy applications, reliable hydraulic hoses help maintain stable machine operation.
Quality hoses reduce leakage problems, support safer workplaces, and improve equipment availability. Because hydraulic systems depend on continuous fluid transfer under pressure, hose selection and maintenance remain important parts of industrial equipment management.
